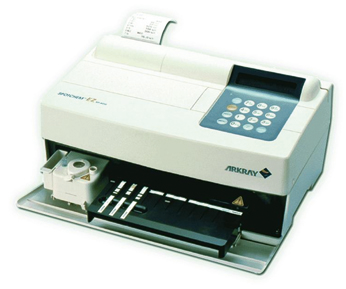

SpotChem EZ Chemistry Analyser


spotchem_ez_flyer.pdf


The SpotChem EZ Chemistry Analyser is a highly reliable 22 parameter clinical chemistry analyser. It enables in-practice biochemistry tests to be performed immediately to help veterinarians make informed diagnostic decisions.

The SpotChem EZ has a compact and lightweight design, making it ideal for any veterinary practice. It offers a low level of maintenance and easy calibration. The SpotChem EZ can simultaneously test up to 9 parameters at any one time. It has a simple and quick operation with up to 63 tests performed per hour.

Features

  • Dry biochemistry
  • Easy calibration
  • Simple operation
  • Compact design
  • Quick and easy to use
  • Built-in centrifuge
  • 22 parameters available
  • Whole blood, serum or plasma
  • Convenient six test panel strips available

The SpotChem EZ is capable of analysing serum, plasma or whole blood samples. There are 3 different sample collection tubes available:


Serum Cuvette: plain serum, serum gel or heparinised plasma samples.

Blood Cuvette: containing heparin anticoagulant for whole blood samples.

Centrifuge Cups: for whole blood samples using the analyser’s internal centrifuge.

Parameters

The SpotChem EZ Chemistry Analyser is capable of analysing up to 9 parameters from one sample and prints results on its internal thermal printer in less than 10 minutes. The full test menu includes 22 individual parameter strips and 8 multi-parameter strips. The SpotChem EZ can run one multi-parameter strip plus 3 single parameter strips at any one time.

  • Reagent chemicals are embedded in pads on the test strips
  • The chemicals react with the patient sample to form a coloured end product
  • The intensity of the colour, or how fast the colour develops, is proportional to the amount of test substance present

Single Parameter Strips

  • Albumin
  • Amylase
  • CPK
  • Fructosamine
  • Glucose
  • GPT/ALT
  • HDL-CD
  • LDH
  • Total Bilirubin
  • Total Protein
  • Urea


  • Alkaline Phosphatase
  • Calcium
  • Creatinine
  • Gamma GT
  • GOT/AST
  • Haemoglobin
  • Inorganic Phosphorous
  • Magnesium
  • Total Cholesterol
  • Triglycerides
  • Uric Acid

Multi-Parameter Strips

  • Panel-V (Alkaline Phosphatase, ALT, Creatinine, Glucose, Total Protein, BUN)
  • Kidney-2 (Albumin, Creatinine, Total Protein, BUN, Uric Acid)
  • Liver-1 (Albumin, ALT, AST, LDH, Total Bilirubin, Total Protein)
  • Stat-1  (ALT, AST, CPK, LDG, Total Bilirubin, BUN)
  • Kenshin-2 (AST, ALT, GGT, TG, Total Cholesterol, HDL-C)
  • Heart (AST, CPK, Total Cholesterol, LDH, Total Protein, BUN)
  • Panel-1 (ALT, AST, Total Cholesterol, Glucose, Total Bilirubin, BUN)
  • Panel-2 (Albumin, Calcium, LDH, Total Bilirubin, BUN)

Species Specific Veterinary Biochemistry Analyser

The SpotChem EZ is a species specific veterinary biochemistry analyser with the capacity to store 100 results in its internal memory. The SpotChem EZ Chemistry Analyser is highly suited to being an in-practice clinical chemistry analyser for any veterinary practice in the UK. It is capable of performing accurate biochemistry analysis on a wide range of species including:
  • Dog
  • Cat
  • Rabbit
  • Ferret
  • Horse
  • Cow
  • Pig
  • Sheep

Dry Reagent Clinical Chemistry


Built-In Centrifuge

Whole blood samples can be measured easily and promptly with the built-in centrifuge for pre-treatment. Continuous measurement of up to 9 items is available.


Automatic Calibration

By reading the magnetic card attached to each test strip, variations among lots and changes with timing of test strips are automatically calibrated.


Specifications

Sample
Serum, plasma, whole blood
Processing Speed
63 tests / h
Minimum Sample Volume
6µl x the number of measurement item + 38µl (min. 250 µl when using whole blood in internal centrifuge)
Calibration
Calibration by magnetic card
Printer
58mm width built-in thermal line printer (max. 36 characters / line)
Power Supply
AC 100 - 120V, 220 - 240V, 50/60 Hz (AC adapter method)
External Output
RS-232 interface, two-way transmission
Weight
5.4 kg
Dimensions
167h x 338w x 203d mm


Ordering Information

Product Code
Product Description
WD5500
WD5531
WD5505
WD5506
WD5507
WD5508
WD5509
WD5510
WD5511
WD5512
WD5513
WD5514
WD5515
WD5516
WD5517
WD5518
WD5519
WD5520
WD5521
WD5522
WD5523
WD5524
WD5525
WD5526
WD5527
WD5528
WD5529
WD5530
WD5545
WD5546
WD5547
WD5541
WD5542
WD5543
WD5544
WD0947
SpotChem EZ Analyser
SpotChem PANEL-V (25)
SpotChem Glucose (25)
SpotChem Uric Acid (25)
SpotChem Total Cholesterol (25)
SpotChem Triglyceride (25)
SpotChem Blood Urea Nitrogen (25)
SpotChem Total Bilirubin (25)
SpotChem Calcium (25)
SpotChem Total Protein (25)
SpotChem Albumin (25)
SpotChem GOT/AST (25)
SpotChem GPT/ALT (25)
SpotChem LDH (25)
SpotChem CPK (25)
SpotChem AMY (25)
SpotChem Gamma-GT (25)
SpotChem Alkaline Phosphatase (25)
SpotChem Creatinine (25)
SpotChem Fructosamine (25)
SpotChem Inorganic Phosphorus (25)
SpotChem Magnesium (25)
SpotChem Direct HDL Cholesterol (25)
SpotChem LIVER-1 (25)
SpotChem STAT-1 (25)
SpotChem PANEL-1 (25)
SpotChem KIDNEY-2 (25)
SpotChem KENSHIN-2 (25)
SpotChem HB (25)
SpotChem PANEL-2 (25)
SpotChem HEART-2 (25)
SpotChem EZ Pipette Tips (500)
SpotChem EZ Blood Cuvette (500)
SpotChem EZ Serum Cuvette (500)
SpotChem EZ Centrifuge Cups
SpotChem EZ Printer Paper (1 roll)


If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyvetdiagnostics.com
