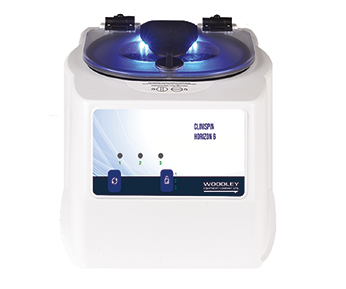

Clinispin horizon 6


clinispin_horizon_6_flyer.pdf


MINIMISE ERROR, REDUCE TRAINING TIME AND DELIVER THE BEST PATIENT OUTCOME WITH CLINISPIN HORIZON 6.

Features

  • Easy to Use - Simple two-button operation to select a preset cycle or lock to a single cycle
  • Lid Lights - Flash at the end of each cycle and continue flashing until the lid is opened
  • Automatic Lid Lock - Will not run with lid open and lid cannot be opened while samples are spinning
  • Cool Operation - Unique design of the convection based cooling system protects the samples even under the heaviest workloads
  • Clear Shatterproof Lid - For easy monitoring
  • Brushless DC Motor - No routine maintenance
  • Reinforced Guard Bowl - Maximum safety and durability
  • 2 Stage Horizontal Rotor - Patented swing-out design produces ideal horizontally separated samples

Specifications

Tube Capacity6 tubes - 3-10 mL
Dimensions (H x W x D)36 x 30 x 23 cm (14" x 12" x 9")
Weight5.4kg (12lbs)
Sound Level64 dB A
Environmental Range16-32°C
Voltage95-253 VAC
Frequency50/60 Hz
Power Requirement220 Watts
Centrifuge Motor1/2 H.P. Brushless
Max G-force2000 xg
Max Speed3800 RPM
Cycle Time1-30 minutes (+/- 2%)


Ordering Information

Product CodeProduct Description
WD4400Clinispin horizon 6


If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyvetdiagnostics.com
