Cardiac Monitor

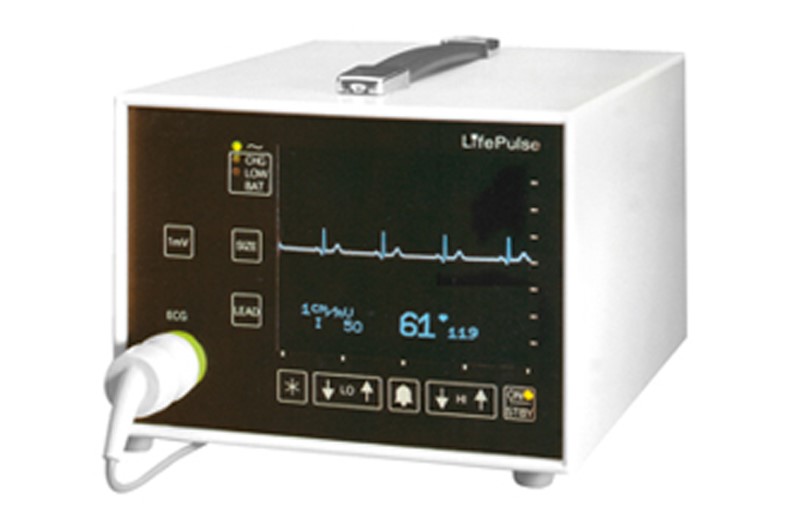

This LP10 cardiac monitor is a portable lightweight single trace monitor designed for simple ECG and heart rate monitoring. It is powered directly from the mains supply.

The ECG features include a high resolution waveform display, and very stable, accurate heart rate in the presence of many types of artifact or VES episodes. This is made possible due to sophisticated software algorithms. On screen pacemaker, lead off indication and alarm limits are also provided.

The LP10 Cardiac Monitor available for rental/hire


  • Pacemaker and lead off indication status
  • ECG pickup obtained via conventional electrodes and a standard 3 way patient cable
  • Compact size and simple to use
  • Provides 24 hour monitoring
  • High resolution waveform ECG display
  • Stable and accurate heart rate
  • Defibrillator synchronisation
  • Various alarms
    • Visual and audible, volume control for QRS
    • Optional 2 minute suspend
    • Lead fault
    • Asystole
    • Bradycardia
    • Tachycadia
  • Patient input
  • Simple user interface (membrane keypad)
  • Robust case design
  • Integral carry handle



Heart rate, QRS indication, low and high heart rate alarms, lead selection and trace size
Lead selector - Lead I, II, III (optional I, II, III, aVR, aVF, V)
1mV ± 5% push button
Displays pacer as 2cm negative spike
500 joule defibrillation & diathermy
Heart rate range
15 - 250 bpm
Standard ECG, defibrillator synchronisation QRS
AC supply
220/240 V
80 x 100mm, single channel ECG, manual freeze
25 mm/sec
4 kgs
140h x 190w x 265d mm


Meets all relevant BSI and IEC standards - CE


Our range of Patient Monitoring Equipment is available on a rental or equipment management basis - please use the links at the top of the page to request a quotation.

This LP10 cardiac monitor can be ordered with any other clinical trial, medical or laboratory equipment to create the most effective equipment management solution for your study.

We specialise in the supply and management of equipment for vital signs monitoring
