epoc Portable Blood Gas Electrolyte and Critical Care Analyser


epoc_international_flyer.pdf


THE EPOC® BLOOD ANALYSER IS A FAST, ACCURATE AND COST-EFFECTIVE PORTABLE ANALYSER IDEAL FOR ANY VETERINARY PRACTICE.

The epoc was developed by the founder of the i-STAT Analyser and is the first wireless Point of Care testing solution to use Smart Card technology.

 It is a cost-effective, state of the art blood gas analyser capable of providing 18 parameters directly to a hand held PDA (included). The epoc is able to wirelessly interface with your in-practice computer and Bluetooth printer.

Features

  • Accurate blood gas, electrolyte and critical care biochemistry results in 3 minutes
  • Room temperature cartridge storage
  • 92µl sample volume, eliminating overfill issues
  • Wireless system that interfaces to the practice computer and Bluetooth printer
  • Veterinary software with species specific reference ranges
  • Easy to use with Windows colour touch screen technology
  • Completely portable handheld system with rechargeable battery
  • Ready to use anytime, anywhere - in-practice, theatre, client site or yard
  • Integrated calibration and quality checks
  • Barcode smart cards for error free identification
  • 2000 patient results stored on analyser
  • Ability to input all patient data, temperature and even ventilator settings
  • Cartridge batch numbers automatically linked to patient results
  • All parameters on the same card

Simultaneously Tests Up to 18 Parameters

The epoc Blood Gas Analyser is affordable, easy to use and requires no refrigeration of consumables. It is ideal for in-practice or field use and is capable of simultaneously testing 18 parameters at once. With its sleek design and touchscreen menu, the epoc Blood Gas Analyser is a modern and accurate device suitable for any UK veterinary practice.

Measured Analytes
  • pH
  • Sodium
  • Potassium
  • Glucose
  • Lactate
  • Chloride
  • Ionised Calcium
  • Haematocrit
  • Creatinine
  • pCO2, pO2
Calculated Values
  • Actual Bicarbonate
  • Total CO2
  • Base Excess of Extra Cellular Fluid
  • Base Excess of Blood
  • Oxygen Saturation
  • Anion Gap
  • Anion Gap Potassium
  • Haemoglobin

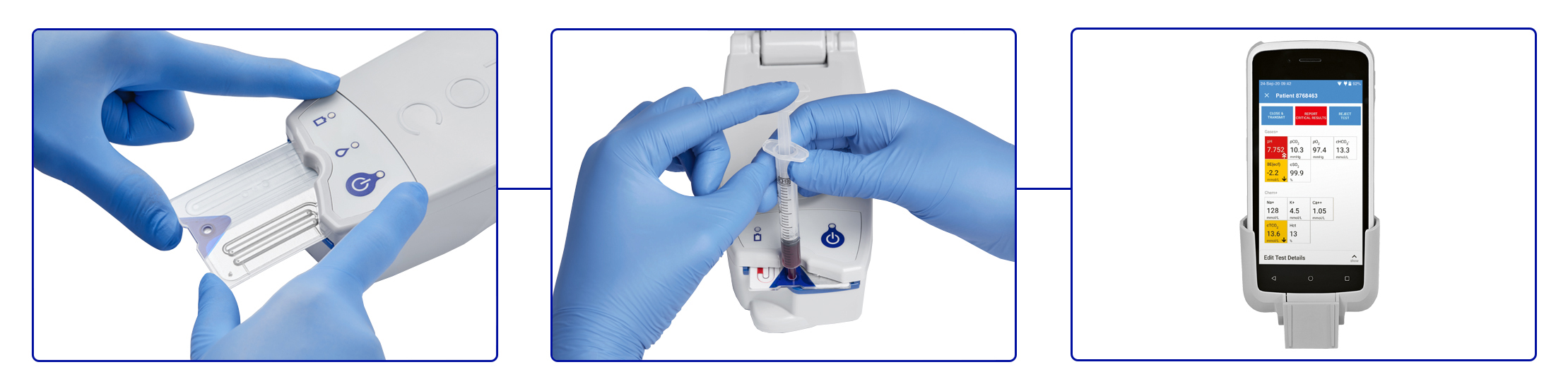

Three Simple Steps to Using the epoc Blood Gas Analyser

Operating the epoc Blood Analyser is simple. A disposable epoc Test Card is inserted into the reader and an automatic calibration cycle is performed. A small sample of fresh whole blood (92μl) is then injected into the sample entry port on the test card. The reader then analyses the blood and approximately 35 seconds after sample injection, results are displayed on the epoc Host.

Blood Analyser Components

The epoc Blood Gas Analyser has four components: the reader, the host, the test cards and the printer. The epoc Blood Gas Analyser is able to provide accurate results for up to 18 parameters within 3 minutes.

epoc Reader

  • Battery powered portable device
  • Internal barcode scanner
  • Card slot for accepting test card
  • Status indicators to inform user of test progress
  • Measures electrical signals from test card sensors
  • Transmits test results wirelessly via Bluetooth to the epoc Host

epoc Host

  • Mobile computer with epoc Host software application installed
  • Communicates wirelessly via Bluetooth with epoc Reader
  • Calculates analytical values from sensor data sent by epoc Reader
  • Displays test results
  • Communicates with practice computer via WiFi

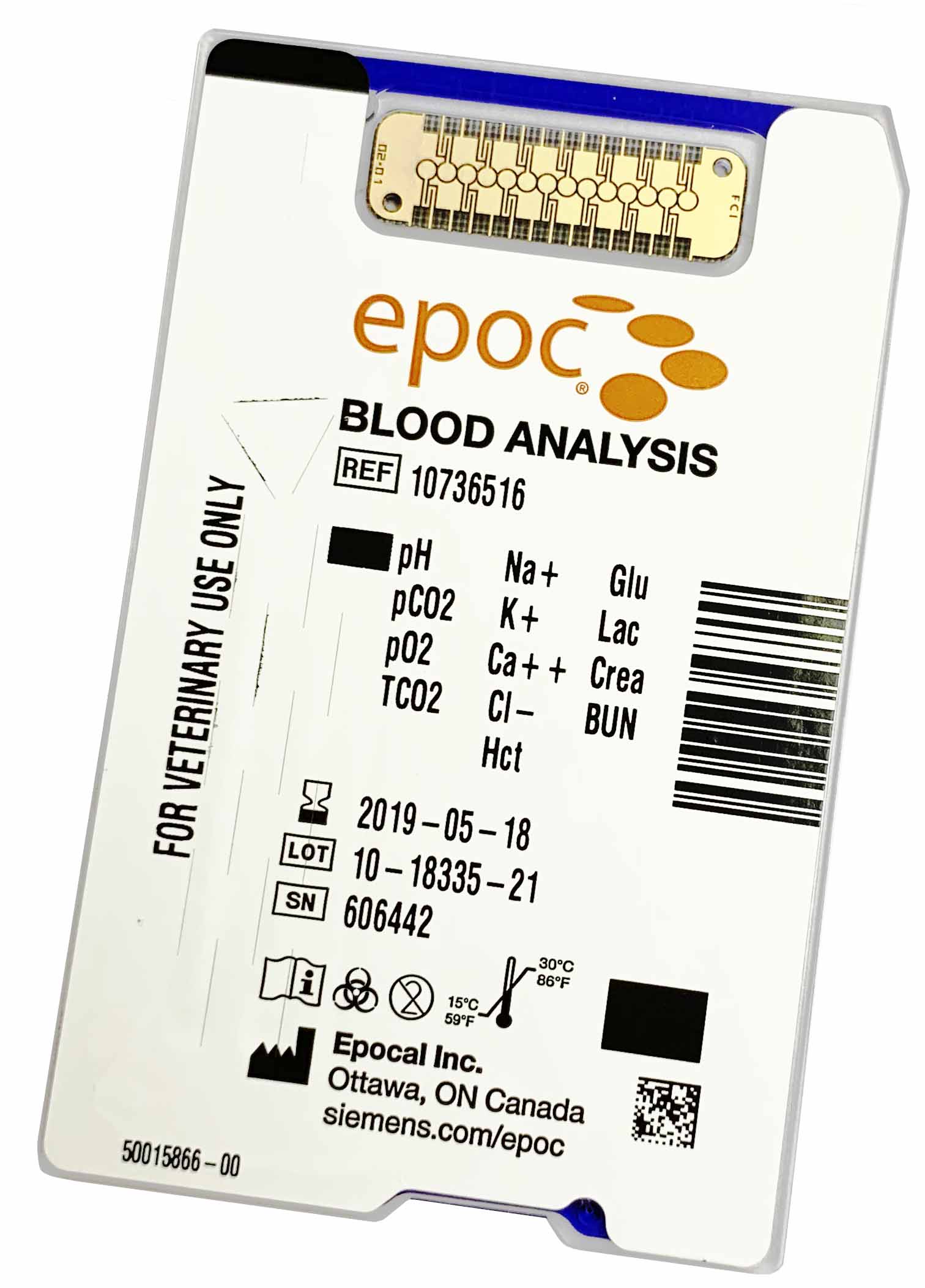

epoc Test Card

  • Single-use device with port for blood sample introduction
  • Contains array of sensors on a Sensor Module
  • Contains calibration fluid within sealed reservoir
  • Generates electrical signals proportional to analyte concentrations in sample
  • Uses Barcode to identify Card Type, “Use By” Date, Serial and Lot Number

epoc Printer

  • Thermal printer
  • Maintenance free
  • Highly reliable
  • Able to print results immediately

Accessories

You can now combine your epoc Analyser with new epoc accessories to ensure your veterinary practice has the latest technology. The new epoc accessories include:
  • epoc Bag - contains phase change material to help keep the epoc at a constant temperature
  • epoc Car Charger - for charging the epoc Analyser and other electrical appliances e.g. mobile phones
  • epoc Bluetooth Thermal Printer - can print results immediately and wirelessly
  • epoc Printer Wall Mount - for attaching the epoc Printer to the wall to save space

Ordering Information

Product Code
Product Description
WD1205
epoc Test Card
WD1206
epoc Analyser System (Host & Reader)
WD1207
epoc Analyser System (Host & Reader) with Printer
WD1208
epoc Printer
WD1209
epoc Printer - Power Adaptor / Battery Charger
WD1210
epoc Printer Paper (1 roll)
WD1221
Carefill Capillary Tubes (5 x 10)
WD1221A
Carefill Capillary Tubes (1 x 10)
WD1211
Eurotrol BGEM Level 1 Control for epoc (10 x 2.5ml)
WD1211V
Eurotrol BGEM Level 1 Control for epoc (1 x 2.5ml)
WD1213
Eurotrol BGEM Level 3 Control for epoc (10 x 2.5ml)
WD1213V
Eurotrol BGEM Level 3 Control for epoc (1 x 2.5ml)
WD1216
epoc In-Car Charger 12V 150W
WD1217
epoc Printer Wall Mounting Plate
WD1218
epoc Label Printer Roll (1)
WD1219
epoc Transport Case
WD1222
epoc Replacement Stylus
WD1220
epoc Host Battery
WD1224
epoc Host Cradle
WD1225
epoc Reader Battery
WD1226
epoc Reader Battery Door
WD1223
epoc Card Box with Label


NOW YOU CAN UPGRADE YOUR PORTABLE CRITICAL CARE ANALYSER TO THE VERY LATEST TECHNOLOGY, SO DON'T MISS THE BRILLIANT TRADE-IN OFFER FOR YOUR I-STAT® SYSTEM.


If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyvetdiagnostics.com
