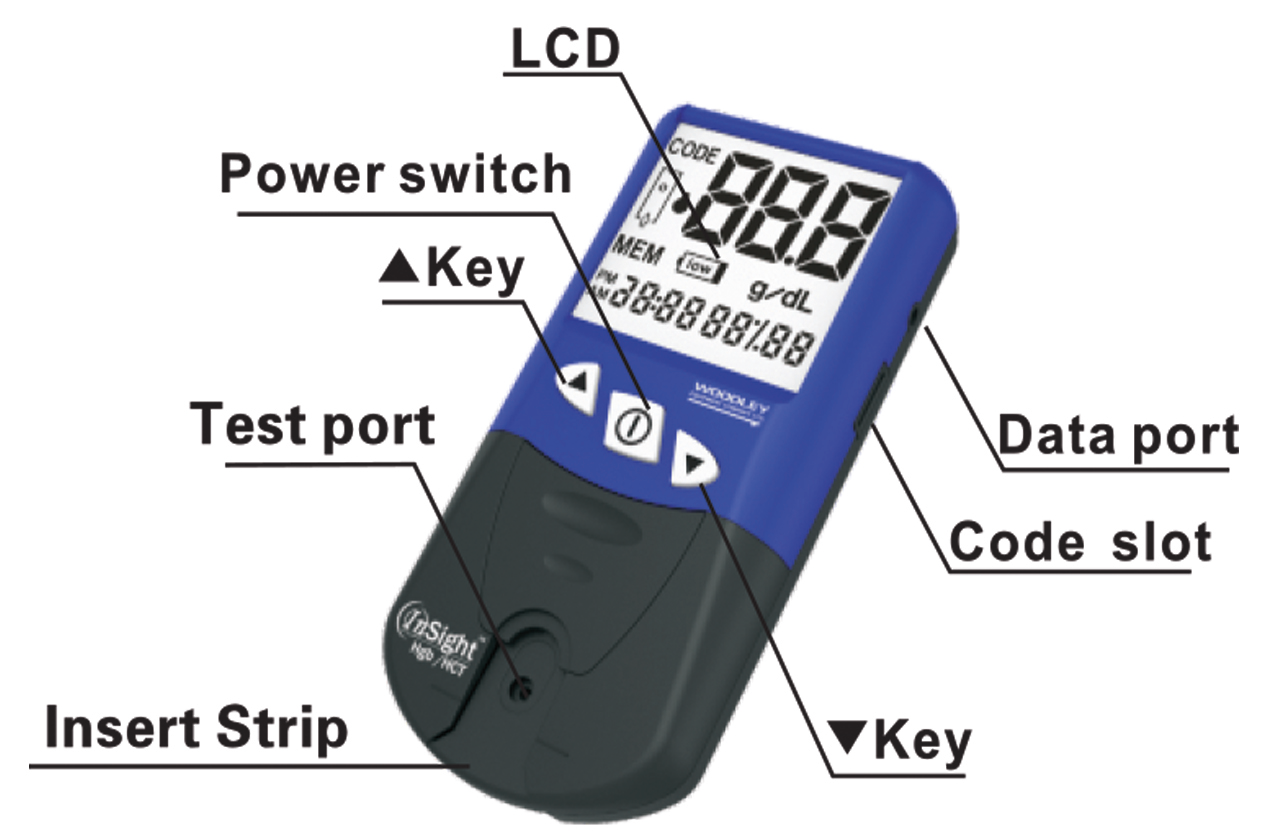

InSight Hgb / HCT Meter


The InSight Hgb / HCT meter measures total haemoglobin and haematocrit in capillary and venous whole blood.


  • Handheld Meter
  • Quick Results - Displays total haemoglobin concentration in grams/per decilitre (g/dL) in 12 seconds
  • Easy Operation - Place a drop of whole blood onto the test strip and the meter's optical detector will automatically measure the change in membrane reflectance
  • Storage - Up to 250 results are automatically stored with a date and time stamp

Kit Contents

  • InSight Hgb / HCT Meter
  • InSight Hgb / HCT Test Strips (10)
  • InSight Hgb / HCT Code Card
  • Lancets (10)
  • Lancing Device
  • Instruction Manual
  • CR2032 Batteries (2)
  • Carry Case


Haemoglobin and Haematocrit in fresh whole blood
Measuring Principle
Optical reflectance
InSight Hgb / HCT Test Strip
Haematocrit (HCT)
Display in percentage
Hgb Measuring Range
4.0~24.0 g/dL
LCD, test results display in SI
Storage Function
Save the strip code, memorise and update 250 test results automatically
<58g (Battery included)
Operating Storage
15~30°C ; RH≤80% non-condensing
Non-operating Storage
20~55°C ; RH≤90% non-condensing

If you would like more information please call +44 (0) 1204 460446 or email
