InSight Blood Pressure Monitor Plus


insight_blood_pressure_monitor_plus_flyer.pdf

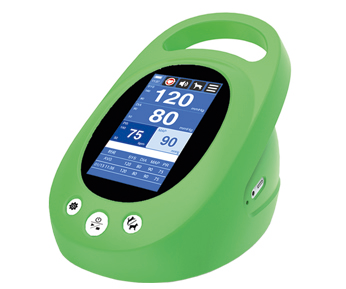

The InSight® Blood Pressure Monitor Plus is a portable veterinary blood pressure monitor, suitable for spot checks or continuous monitoring.

Features

  • Accurate and Reliable - Uses 2 patented algorithms specifically developed for animals based on animal vital signs
  • Easy to Use - Large buttons or intuitive touch screen
  • Silent - Measures BP quietly and alarms can be silenced to avoid distressing animals
  • Fast - Take multiple measurements quickly
  • Memory - 1000 results in Monitor Mode, 100 patients and 200 data sets per patient in Spot Mode
  • Portable - Rechargeable lithium or alkaline battery operation
  • Data Transfer - APP available to transfer data to mobile phone or tablet/PC via Bluetooth
  • Includes real-time waveform display on screen

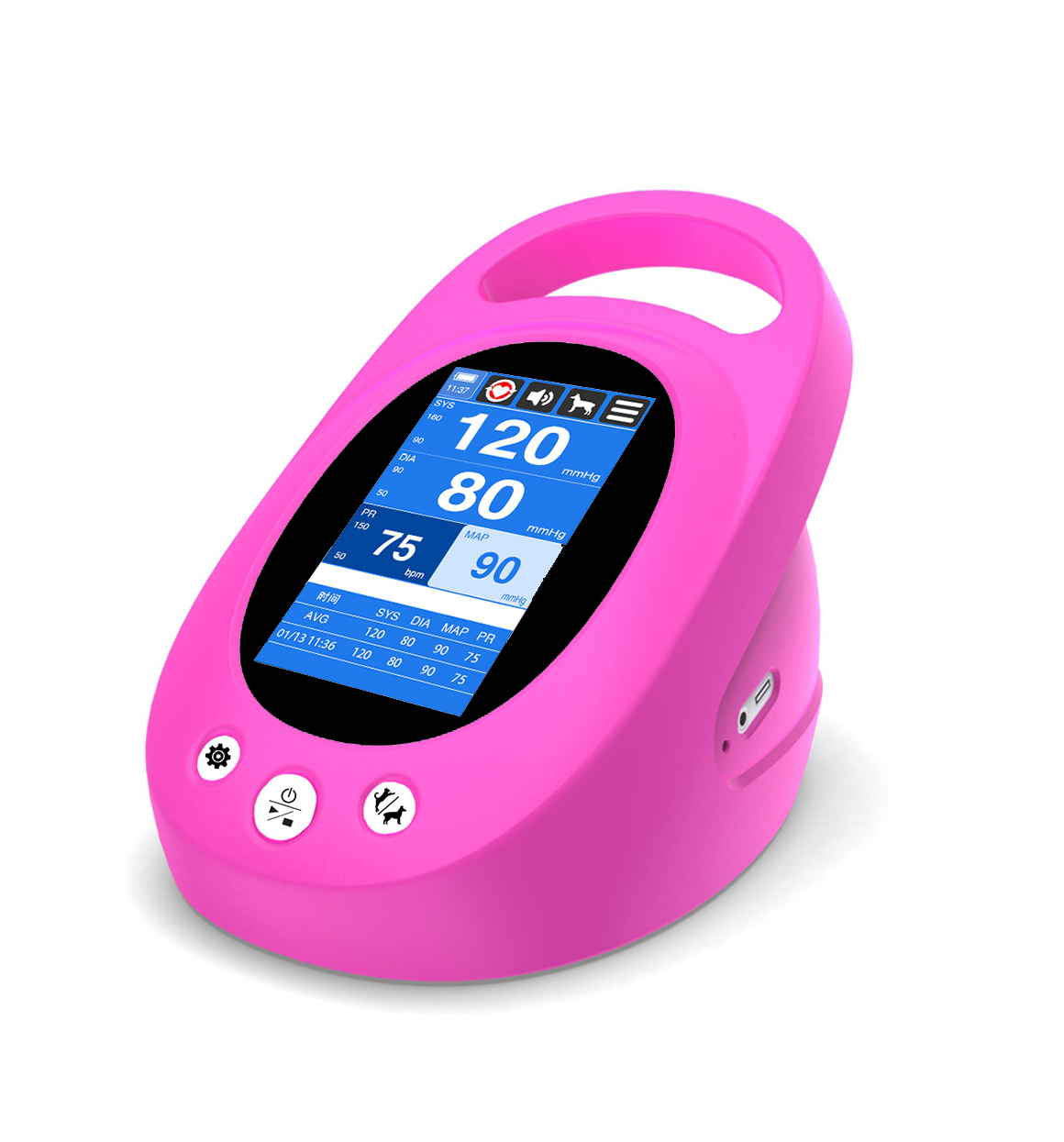

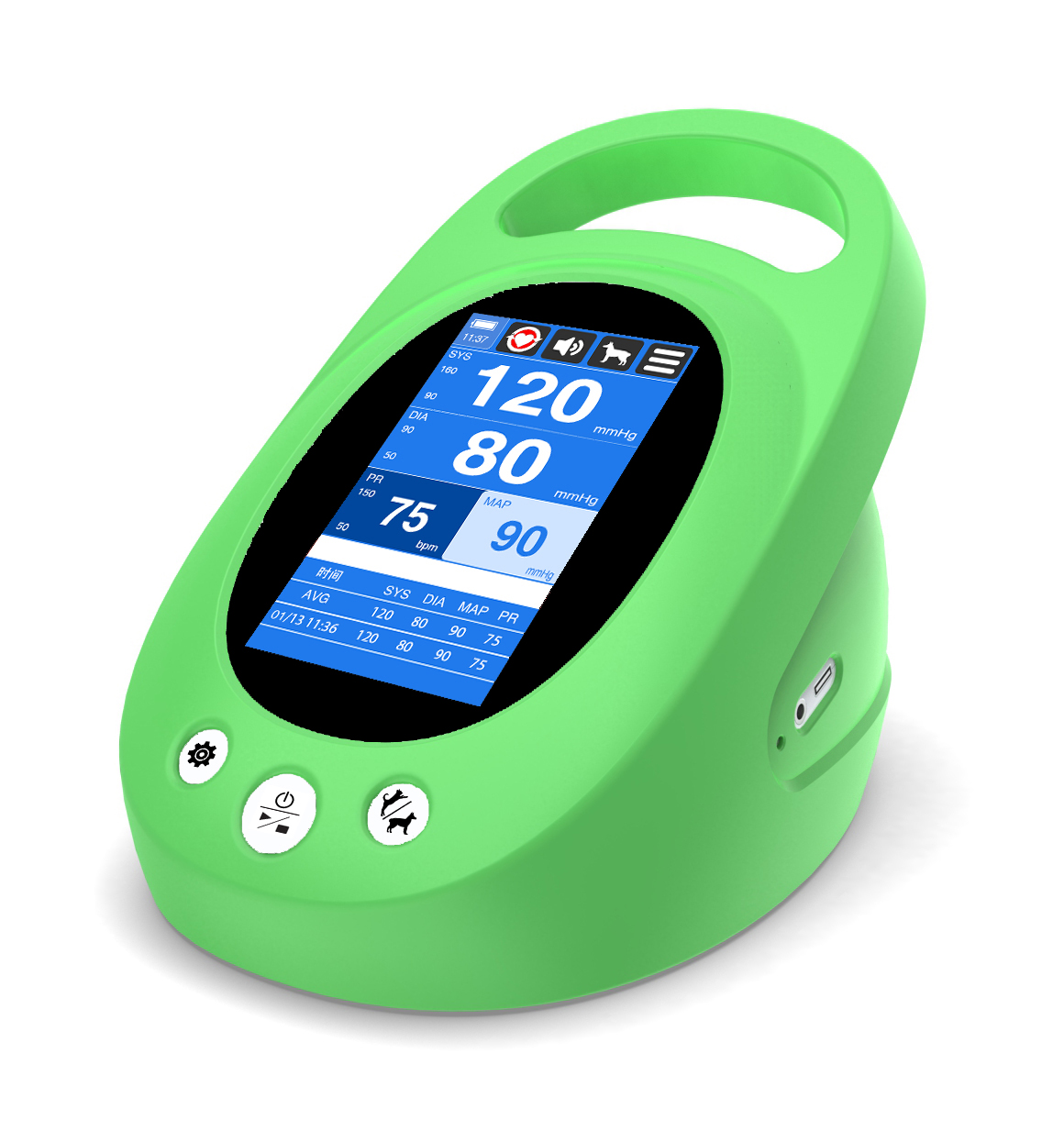

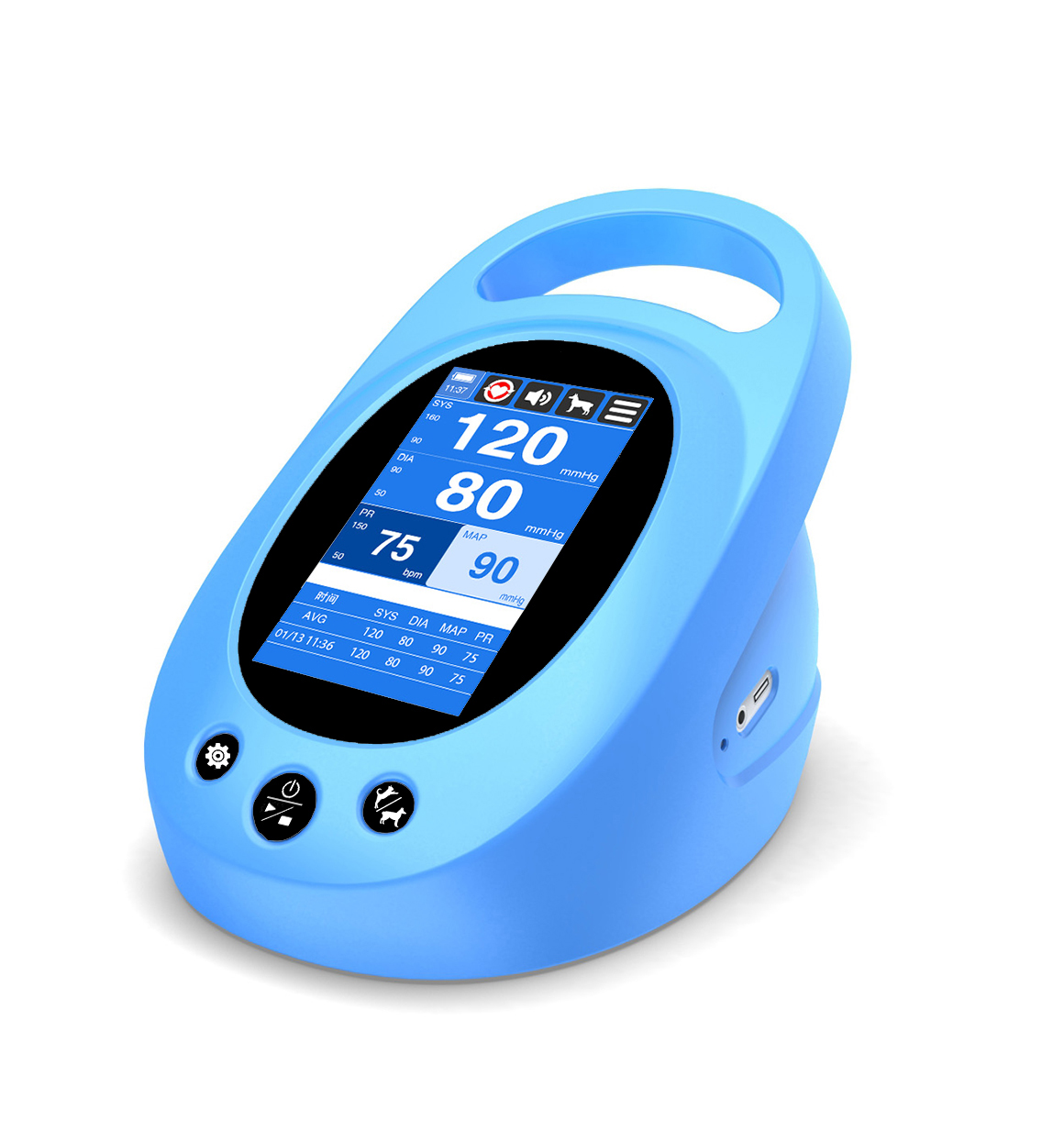

Includes Protective Sleeve - Choice of Blue, Green or Pink


Specifications

Method of Measurement
Schematic method
Blood Pressure Range
SYS: 40 - 270 mmHg
DIA: 20 - 230 mmHg
MEAN: 10 - 200 mmHg
Pulse Rate Range
BPM 40 - 240
Cuff Accuracy
0 - 300 mmHg (±3 mmHg)
Conditions of Use
0 - 50°C, 15% - 90% humidity, no condensation
Storage Conditions
-20 - 65°C, 15% - 90% humidity, no condensation
Power
Lithium ion batteries and/or AC adapter
Input Voltage Range
Universal (100 - 240V AC)
Input Frequency Range
General purpose (50 - 60Hz)
Adapter Output
DC: 9V - 2A
Lithium Batteries
7.4, 2.6Ah, 19.24Wh
Dimensions
15.9 x 12.7 x 13.3 cm
Weight
0.95kg (with battery)


Ordering Information

Product CodeProduct Description
WD1847InSight BP Monitor Plus
WD1842Rechargeable Lithium Battery
WD1843Rubber Case (Green, Blue, Pink)
WD1844NIBP Extension Cable
WD1848NIBP Disposable MediTech Cuff (% Sizes)
WD1849NIBP Disposable SunTech Cuff (5 Sizes)


If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyequipment.com
