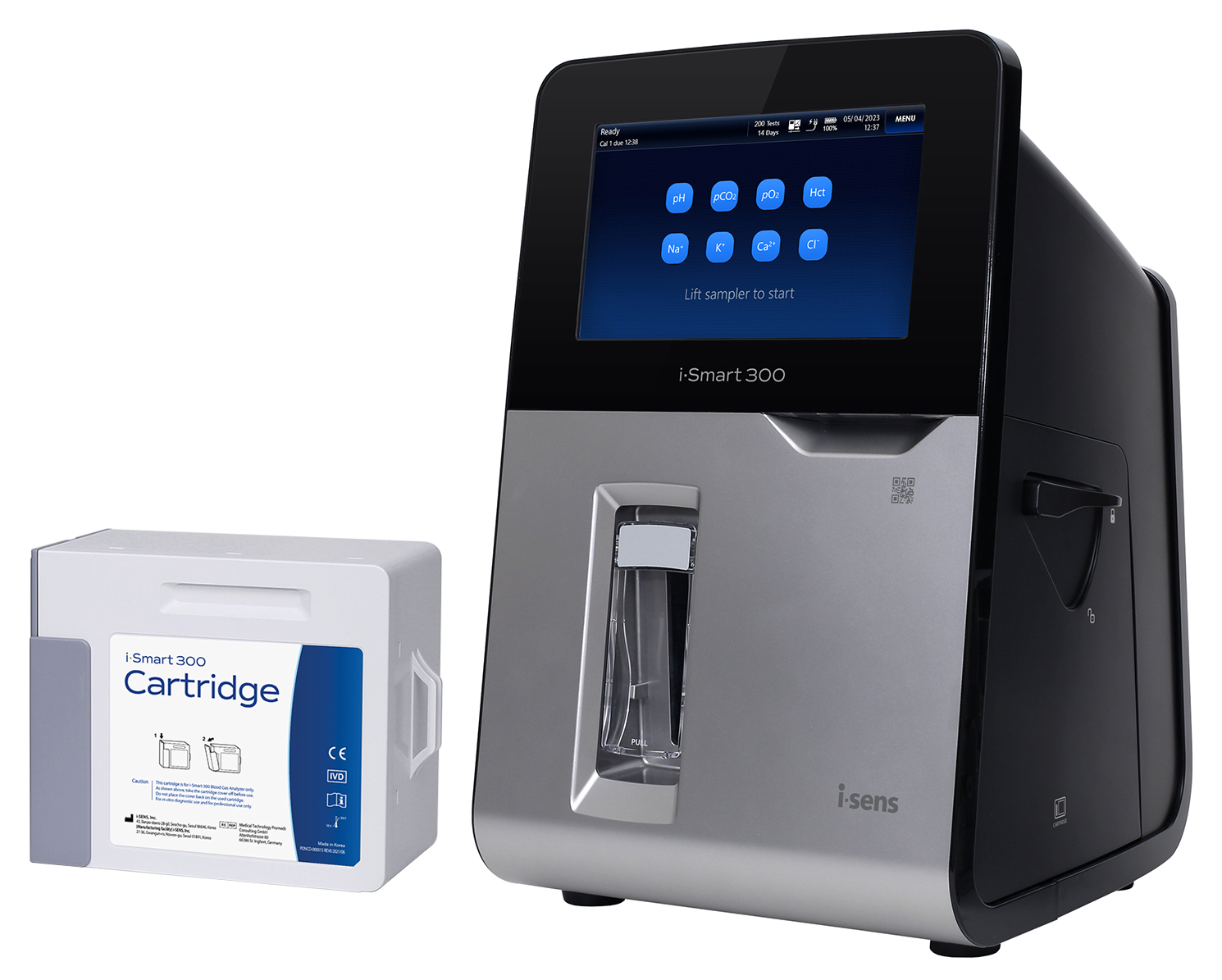

i-Smart 300 Blood Gas Analyser


i_smart_300_flyer.pdf


The i-Smart 300 Blood Gas Analyser delivers critical patient results quickly and simply, requiring zero maintenance.

Features

  • Fast, accurate analysis
  • Tests pH, pCO2, pO2, cNa+, cK+, cCa2+, cCl-, HCT
  • 80µl sample volume
  • Results in 50 seconds
  • Large LCD touch screen
  • Battery or mains powered
  • No user maintenance
  • Automatic calibration
  • All-in-one cartridge contains electrodes, consumables, waste and sample probe
  • Small and portable
  • System connectivity - integrates with LIS/HIS
  • CE marked
  • IVDD (Directive 98/79/EC) compliant


Specifications

Operating Parameters

Measured Parameters
pH: 6.500 ~ 8.000
pCO2: 5.0 ~ 150.0 mmHg
pO2: 5 ~ 700 mmHg
cNa+: 80 ~ 200 mmol/L
cK+: 1.0 ~ 20.0 mmol/L
cCa2+: 0.25 ~ 5.00 mmol/L
cCl-: 50 ~ 150 mmol/L
HCT: 10 ~ 70%
Derived Parameters
pH(T), pCO2(T), pO2(T), ctCO2, cHCO3-, cHCO3-(std), BE(ecf), BE(B), Anion gap(K), ctHb, sO2, Ca2+(7.4), pO2(A-a)
Sample Type
Heparinised whole blood
Sample Volume
80µl
Analysis Time
50 seconds
Calibration
Automatic or manual

Cartridge

Pack Sizes
50 tests
100 tests
200 tests
300 tests
Storage Conditions
15°C ~ 25°C
Components
Sensors
Cal 1, Cal 2
Reference solution
Sampler and waste bag
Valve and tubing
Dimensions/Weight
182 (W) x 148 (H) x 100 (D) mm
1.7kg

Instrument

Computer
1.6 GHz processor
1GB RAM
8GB flash storage
Operating System
Windows® Embedded Standard 7
Display
8" TFT LCD touch screen
Printer
2" thermal printer (built-in)
Dimensions/Weight
257 (W) x 394 (H) x 252 (D) mm
7.1kg

Power Requirements

Voltage
100 ~ 240 VAC
Frequency
50/60 Hz (±10%)
Power Adaptor
AC-DC power supply (Output: DC24V,2.7A)
Battery Operation
Max. 2 hours (Li ion cells)
Interface
Built-in barcode scanner
4 USB ports
Serial (RS232 port)
Ethernet (RJ45) port
VGA port (for external screen)

Ordering Information

Product CodeProduct Description
WD1345i-Smart 300 Analyser
WD1346i-Smart Cartridge 50T (3 Weeks)
WD1347i-Smart Cartridge 100T (3 Weeks)
WD1348i-Smart Cartridge 200T (3 Weeks)
WD1349i-Smart QC (RNA QC Multi-level) - 1 Vial
WD1349Ai-Smart QC (RNA QC Multi-level) - Box of 30
WD1362Ai-Smart Clot Catcher - 1 Pack of 10
WD1357AC/DC (24V) Adaptor
WD1358Barcode Scanner
WD1359Printer Paper - 1 Roll


If you would like more information please call +44 (0) 1204 460446 or email sales@woodleylabdiagnostics.com
